New Style Aluminum Sport Tent for Marathon Event

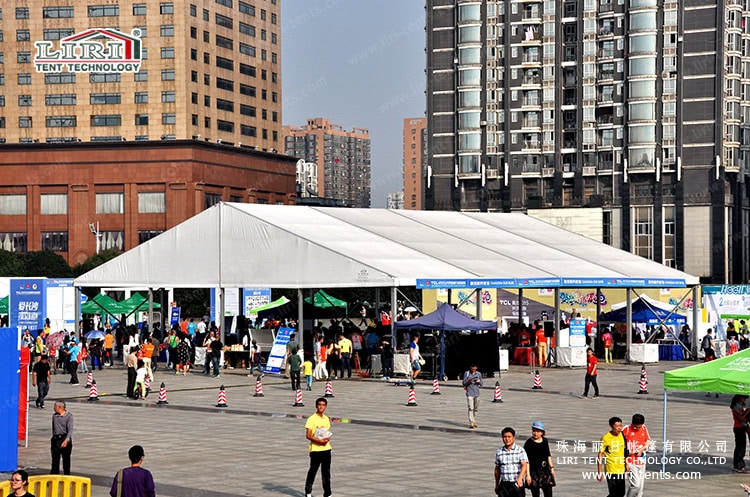

Our Newest Aluminum Sports Tents provide an indoor environment at almost any place for various sports.  It is not only easy to set up and dismantle but the price competitive also. The following picture is for a Marathon Event in China.

DSC_0068_副本

Specifications

1, Size: 3m-60m width with unlimited length

2, Temperature Resistance: -30 degree Celsius to +70 degree Celsius

3, Wind loading Capacity: 80-100km/h(can be enhanced)

For more details, please refer to the following chart(ET series)

Model No.WidthLengthEave HeightRidge HeightBay DistanceMain Profile
ET8/3308munlimited3.3m4.53m5m152x119x3.5mm
ET10/33010munlimited3.3m4.85m5m152x119x3.5mm
ET12/33012munlimited3.3m5.16m5m152x119x3.5mm
ET15/33015munlimited3.3m5.62m5m152x119x3.5mm
ET16/33016munlimited3.3m5.72m5m152x119x3.5mm
ET18/33018munlimited3.3m6.01m5m152x119x3.5mm

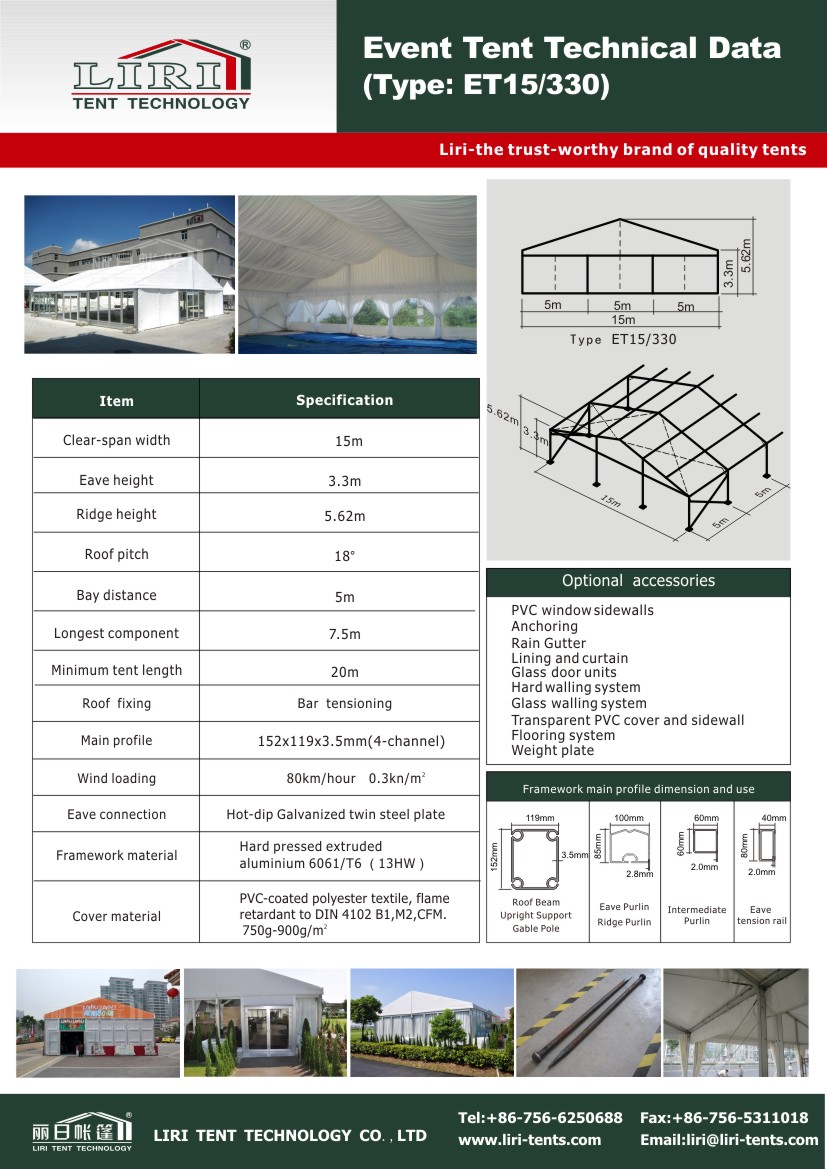

ET15

System Features

–Four-channel aluminum frame

–Galvanized steel connection pieces

–Kindred fabric system

–Bar tensioning roof system

–Interchangeable parts between sizes

–No exterior guy lines are required

–Full line accessories
